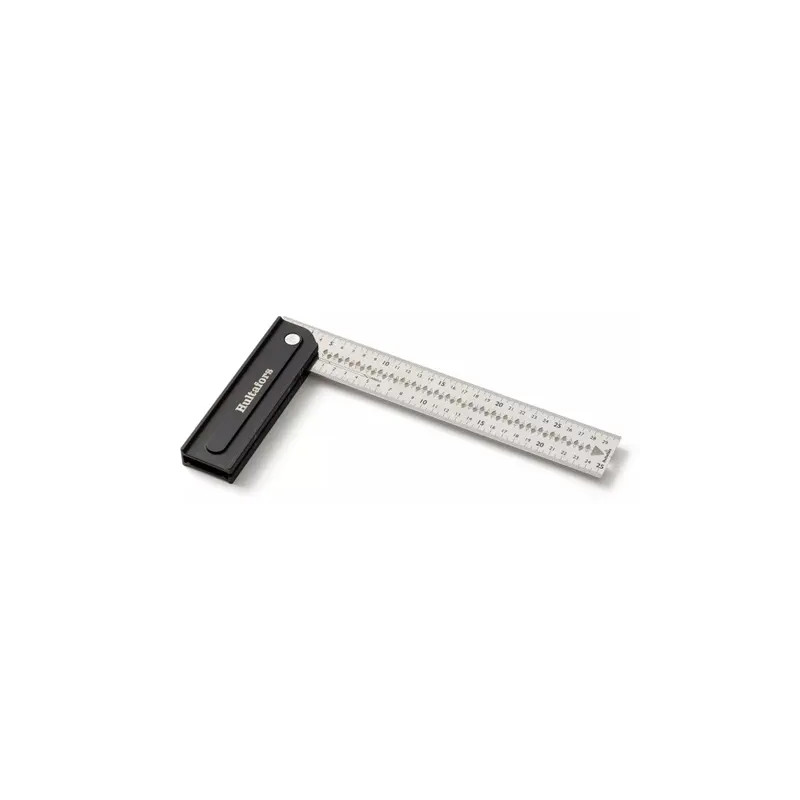

Quattro adjustable bracket - Stainless steel - Hultafors

Quattro adjustable bracket - Stainless steel - Hultafors

A patented square whose blade can be rotated 45°, 90° and 135°. It can also be rotated 270 degrees to use the opposite side of the base without a slot that could catch thin sheet metal parts.

Additionally, markings are provided for 22.5°, 67.5° and 75°/15°. The square is also fully foldable, making it easy to store and carry in your work pants pocket.

The blade width is 45mm to accommodate standard stud dimensions and its axial line makes it easy to quickly mark both sides of a stud.
The outside corner of the bracket is pointed, a feature not found in other adjustable brackets.

If you rotate the blade 270° , you get a rounded corner, which allows you to work with uneven corners.

A sturdy joint and 1mm thick high-strength stainless steel blade make for a highly durable design that can withstand harsh working environments and will last a long time.

Carefully selected materials and manufacturing techniques such as a CNC-milled base and precision laser-cut blade provide high precision and an angular tolerance of ±0.06° (±1 mm/m).

Features :

• Adjustable with predetermined positions for 45°, 90°, 135°, 180°, 225° and 270°.
• Laser-engraved millimeter graduation with very high contrast and abrasion resistance.
• The base is fully anodized aluminum with a 19mm thick handle.
• High-strength stainless steel blade – width 45 mm, thickness 1 mm.
• Made in Europe with full control over working conditions and durability.
• Blade length: 25 cm
