Large Stainless Steel Gutter Height 2 cm - 2XSDRAINFLAT EASY Black Aluminum Grate - LINE ECO

Large Stainless Steel Drain Height 2 cm - 2XSDRAIN FLAT EASY Black Aluminum Grate - LINE ECO

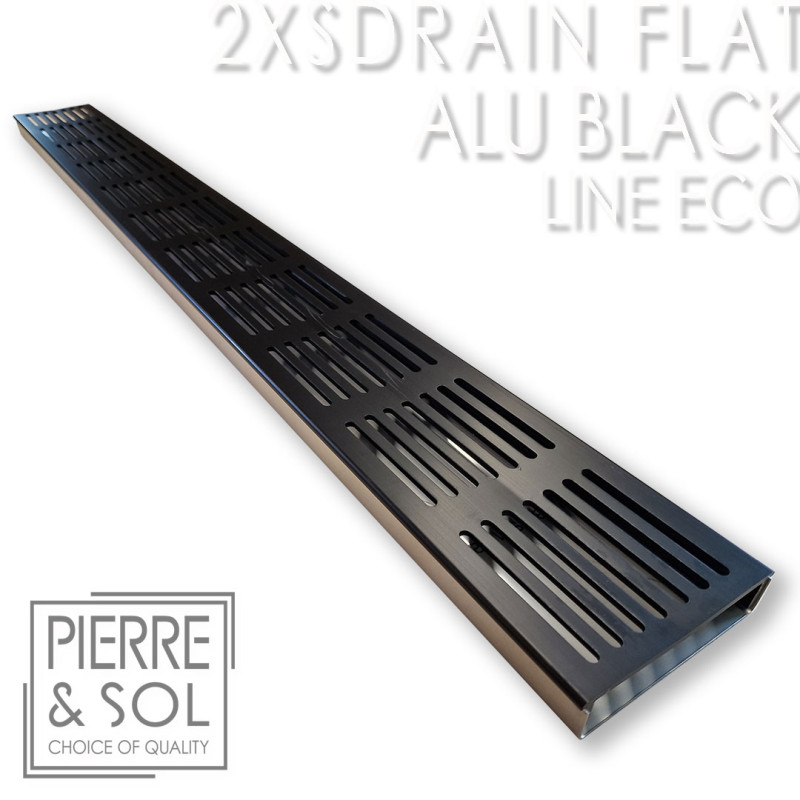

The 2XSDRAIN FLAT EASY ECO LINE is a 10.5 cm wide drain with a very low height made up of a stainless steel channel and a black aluminum grid.

Quality: INOX 316 - A4 ideal for use outdoors, marine environments, swimming pools, etc.

WIDTH: 105 mm

EXTRA MINI HEIGHT 2XS: 20 mm

This gutter is installed around the home, where there is no car traffic.

You can drain water from the gutter, for example, into the sewer or an infiltration system, using a lower drain opening. By evacuating the water towards an infiltration system, you also act sustainably and improve the water balance of the soil. PIERRE & SOL offers Gully infiltration sumps or others.

This gutter has the option of a bottom outlet. The lower outlet must be connected to the network. For the lower outlet, drill a Ø45 mm or Ø80 mm hole in the bottom of the gutter using a stainless steel hole saw. see here .

Benefits :

• Super low height 2 cm - 20 mm
• A discreet and elegant drainage solution for the terrace.
• Durable stainless steel channel element.
• Easy to install.
• Easily removable grill.
• Only 10.5 cm exterior width which allows good water collection.
• Resistance class A 15 (pedestrian only).

Dimensions:

Gutter:

• Length: 1 m (or 50 cm to order)
• Exterior width: 10.5 cm
• Height: 2cm

Corner element in 2 pieces: (On order)

• Length: 15.9 cm
• Exterior width: 10.5 cm
• Height: 2cm

2-piece T-piece: (On order)

• Length: 18.2 cm / 15.7 cm
• Exterior width: 10.5 cm
• Height: 2cm

Advice :

• If the covering is new, we advise you to stretch a wire to determine the level rating. In this context, always place the grid 3 mm under the wire
• If you are placing the gutter in an existing covering, we recommend that you make a wooden template of the desired height for leveling.
• If the channel is installed along a vertical wall, the edge of the junction piece must be cut on that side.
• Gluing fittings and gutters makes it easier to maintain alignment

Attention :

Connect a maximum of 6 meters of 2XS gutters to a single lower hole.

Avoid odors by installing a siphon at the sewer connection.

Accessories available separately, SEE ON THIS PAGE
