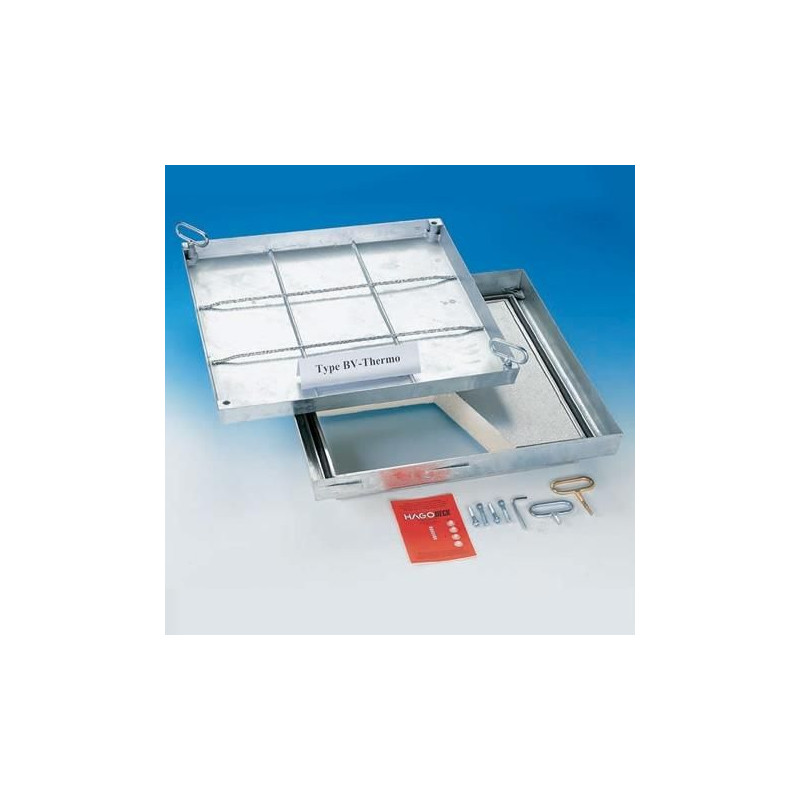

Cover to be tiled in insulated galvanized steel - B 125 kN - HAGO

Insulated galvanized steel tile lid. It is waterproof and odorproof.

Outside dimensions:
€924.00Tax Included
HAGO BV-THERMO 55

Cover to be tiled in insulated galvanized steel - B 125 kN - HAGO

Tile lid waterproof and odorproof.

It is also insulated thanks to a Z-profile containing an insulating plate made of hard polyurethane foam with an aluminum protective layer on both sides.

Characteristics:

  • The edge and lid of the pit are made of cold-formed steel sheet 2 mm thick.
  • The floor hatch is equipped inside with a cross welded frame made of twisted steel wire with a diameter of 8 resp. 12mm.
  • The visible edge after filling is 4-5 mm.
  • Equipped with a high quality chemical resistant seal.
  • Flush-mounted height: 75 mm.
  • Inner height of the lid: 50 mm.
  • Breaking load 125 kN according to EN 124.
  • Waterproof and odor resistant.
  • Z-profile containing a polyurethane hard foam insulation plate with an aluminum protective layer on both sides
  • RC value 3.6 m 2 K/W
  • Very easy to open and close, frame and hatch connected by Allen screws.
  • Surface treatment: hot-dip galvanized.
  • Comes complete with all the necessary accessories and clear assembly instructions.

Size:

ReferenceInterior dimensionsExternal dimensions
BV-THERMO 55 500 x 500 mm 635 x 635 mm
BV-THERMO 66 600 x 600 mm 735 x 735 mm
BV-THERMO 86 800 x 600 mm 935 x 735 mm
BV-THERMO 88 800 x 800 mm 935 x 935 mm
BV-THERMO 106 1000 x 600 mm 1135 x 735 mm
BV-THERMO 110 1000 x 1000 mm 1135 x 1135 mm
