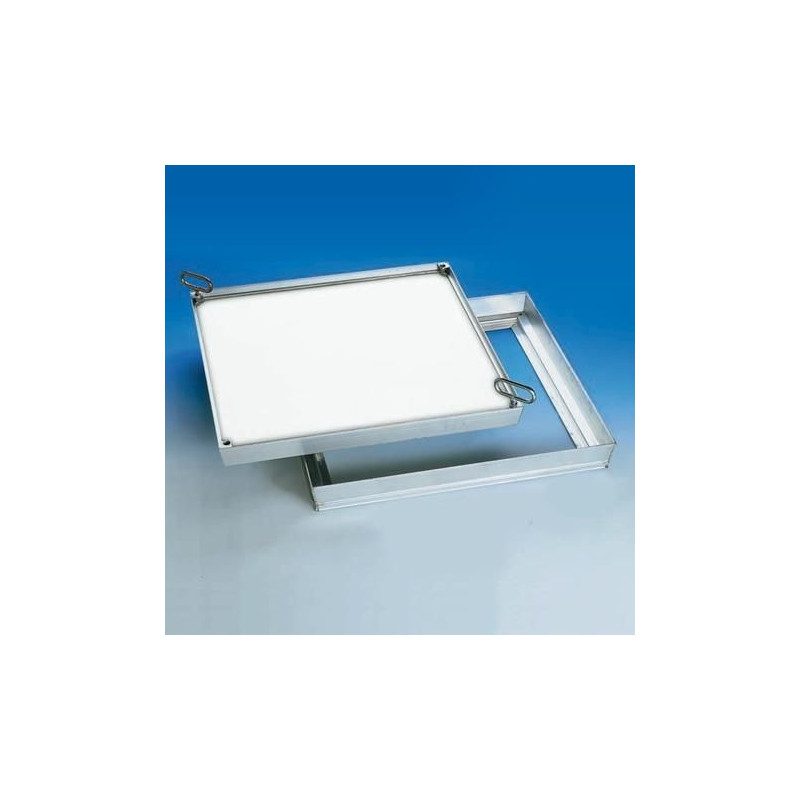

Aluminum tileable cover - Solidified - A 15 kN - HAGO
      • Aluminum tileable cover - Solidified - A 15 kN - HAGO

      Aluminum tileable cover - Solidified - A 15 kN - HAGO

      Aluminum tile lid waterproof and odorproof.

      Solidified using a composite aluminum honeycomb plate leaving 24 mm of clear height.

      Outside dimensions:
      €822.00Tax Included
      HAGO CLA 22

      Aluminum tileable cover - Solidified - A 15 kN - HAGO

      Extruded aluminum tile lid, waterproof and odorproof.

      Solidified using a composite aluminum honeycomb plate leaving 24 mm of clear height.

      Characteristics:

      • Frame and cover in extruded aluminum profiles.
      • Flush-mounting height: 76.5 mm.
      • The hatch is filled as standard with a solid composite aluminum honeycomb plate, leaving 24 mm of free height for finishing with tiles or the like.
      • The breaking load is 15 kN according to EN 124.
      • Waterproof and odor resistant thanks to a high-quality chemical-resistant seal.
      • Supplied complete with all the necessary accessories and clear installation instructions.
      • Ultra fast assembly.

      Size:

      ReferenceInterior dimensionsExternal dimensions
      CLA 22 200 x 200 mm 320 x 320 mm
      CLA 33 300 x 300 mm 420 x 420 mm
      CLA 44 400 x 400 mm 520 x 520 mm
      CLA 55 500 x 500 mm 620 x 620 mm
      CLA 64 600 x 400 mm 720 x 520 mm
      CLA 66 600 x 600 mm 720 x 720 mm
      CLA 86 800 x 600 mm 920 x 720 mm
      CLA 88 800 x 800 mm 920 x 920 mm
      CLA 106 1000 x 600 mm 1120 x 720 mm
      CLA 108 1000 x 800 mm 1120 x 920 mm
      CLA 110 1000 x 1000 mm 1120 x 1120 mm
