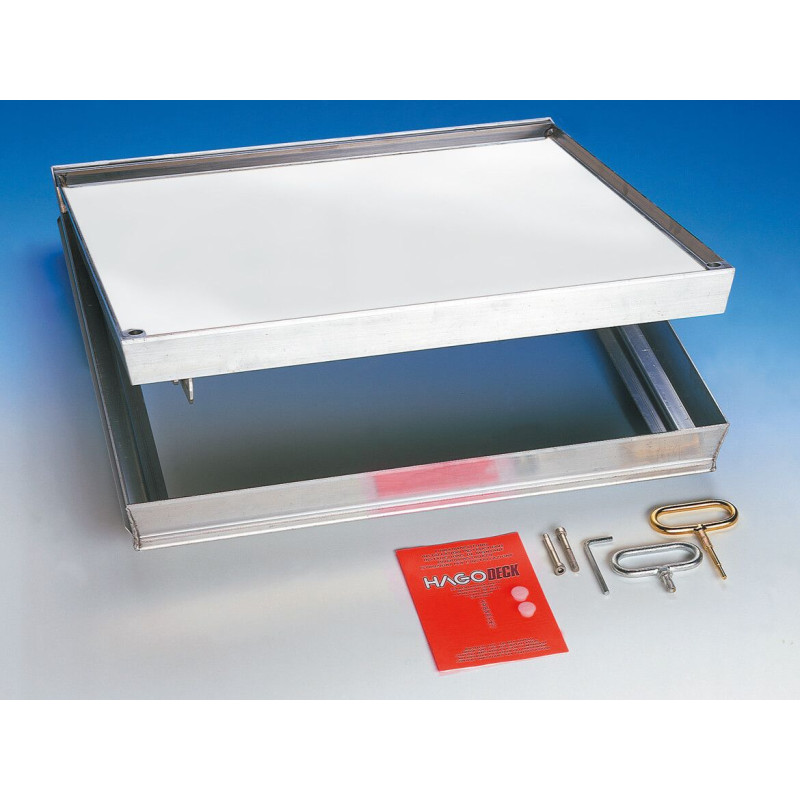

      Extruded aluminum tile cover waterproof and odorproof, mounted with a self-locking hinge.

      Outside dimensions:
      €1,494.00Tax Included
      HAGO CCA 55

      Aluminum tileable lid - Self-locking hinge - A 15 kN - HAGO

      Extruded aluminum tile lid waterproof and odorproof.

      Mounted with a self-locking hinge, it allows the cover to remain in the open position and simplifies the opening of the latter.

      Characteristics:

      • Frame and hatch in extruded aluminum profiles.
      • Flush-mounting height: 76.5 mm
      • The hatch is filled with a solid composite aluminum honeycomb plate, leaving 24 mm of free height for finishing with tiles or the like.
      • The breaking load is 15 kN according to EN 124.
      • The hatch comes with a hinge for easy opening and closing and a lock in the open position.
      • Waterproof and odor resistant thanks to a high-quality chemical-resistant seal.
      • Supplied complete with all the necessary accessories and clear installation instructions.
      • Very easy to open.

      Size:

      ReferenceInterior dimensionsExternal dimensions
      CSF 55 500 x 500 mm 620 x 640 mm
      CSF 64 600 x 400 mm 720 x 540 mm
      CSF 66 600 x 600 mm 720 x 740 mm
      CSF 86 800 x 600 mm 920 x 740 mm
      CSF 88 800 x 800 mm 920 x 940 mm
      CSF 106 1000 x 600 mm 1120 x 740 mm
