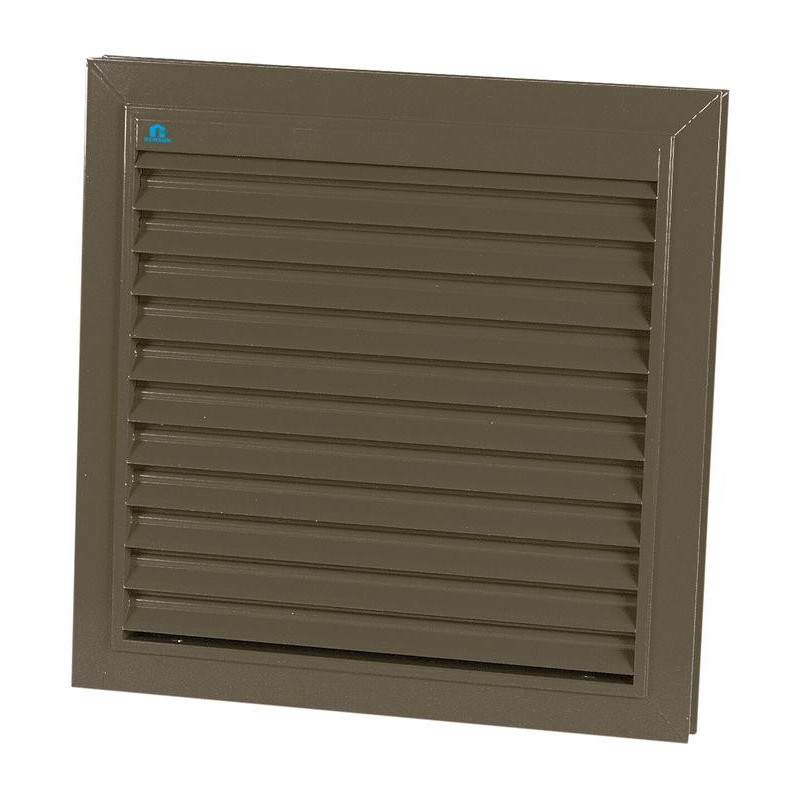

CUSTOM-MADE ventilation grille to be installed in the frame with V-shaped blades type 415.

Protects from visibility and intrusion of objects.
Class IP 44 for the execution with water recovery profile and mosquito net for electrical installations at least 350 mm.

Material :

• Made from Alu AlMgSi 0.5 profiles (according to EN 12020-2)
• Standard: 304 stainless steel mesh – 6 x 6 mm
• Finish: natural anodized (20 microns) or powder coated in all RAL colors (60-80 microns)

Fixation :

To be installed like double glazing

Special applications:

1. Frame grille with security against visibility and intrusion of objects

Dimensions:

• Blade pitch: 20 mm
• Frame thickness: 24, 28 or 32 mm
• Minimum dimensions: 130 x 130 mm

Options:

• Water recovery profile
• Drip edge profile
• 304 stainless steel mosquito net 2.3 x 2.3 / 10 x 10 / 20 x 20 or without mosquito net
• 316 stainless steel mosquito net
• Removable mosquito net
• Filtered
