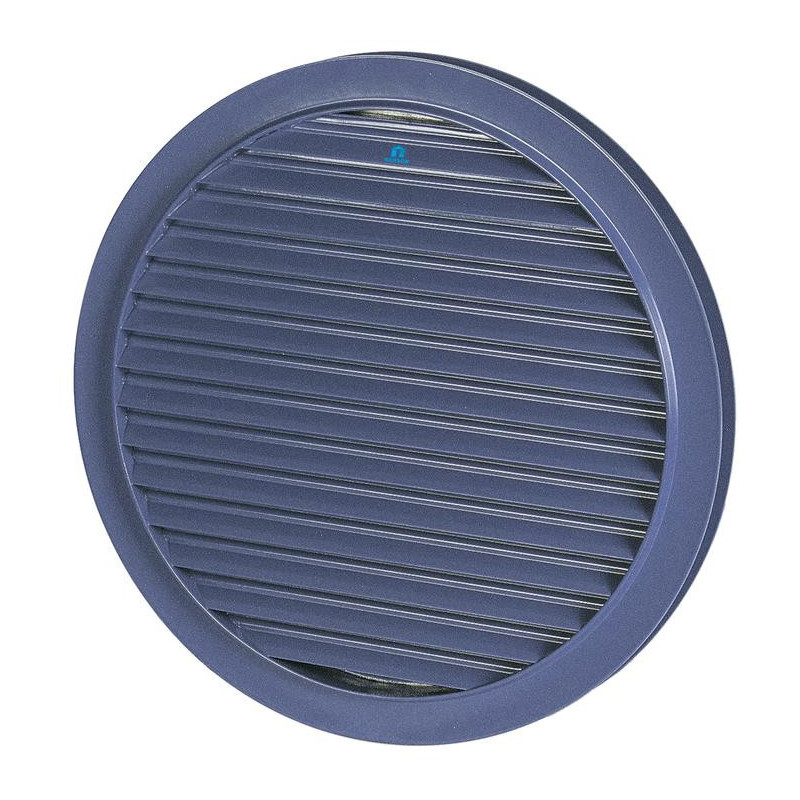

CUSTOM-MADE ventilation grille to be installed in the frame with round V-shaped blades 415.

Protects from visibility and intrusion of objects.
Class IP 44 for the execution with water recovery profile and mosquito net for electrical installations at least 350 mm.

Material :

• Made from Alu AlMgSi 0.5 profiles (according to EN 12020-2)
• Standard: 304 stainless steel mesh - 6 x 6 mm
• Frame assembled by a single weld
• Finish: natural anodized (20 microns) or powder coated in all RAL colors (60-80 microns)

Fixation :

To be installed like double glazing

Dimensions:

• Blade pitch: 20 mm
• Frame thickness: 24 mm
• Minimum diameter: 340 mm
• Maximum diameter:
  – 1400 mm if anodized in natural color (F1)
  – 1500 mm if lacquered in RAL color
  – From 1500 mm: in two parts

Options:

1. 304 stainless steel mosquito net 2.3 x 2.3 / 10 x 10 / 20 x 20 or without mosquito net
2. 316 stainless steel mosquito net
