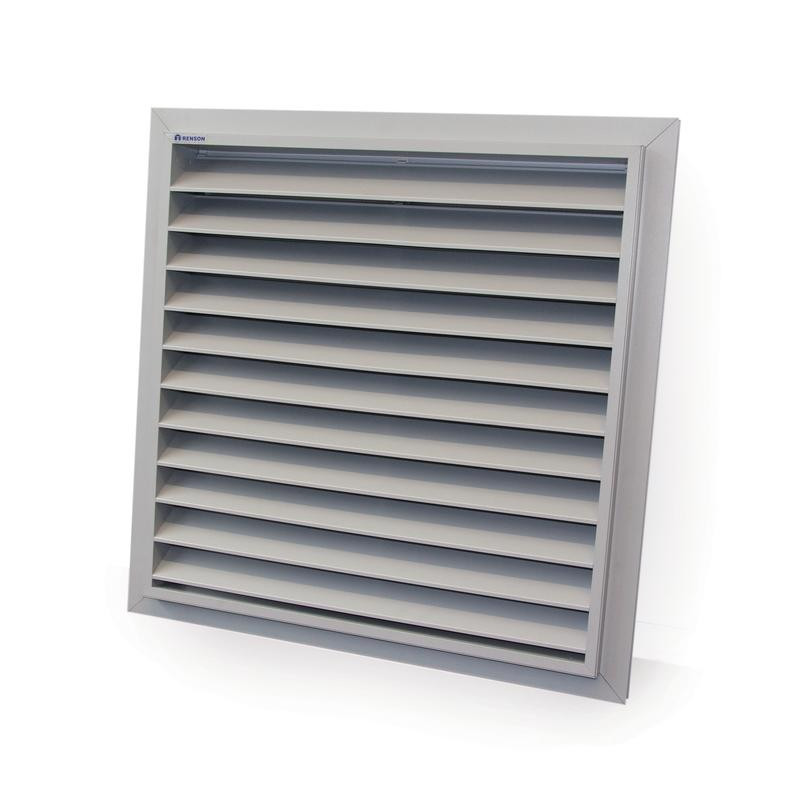

Renson 483 - High flow grille to be fitted in the frame CUSTOM - Renson

Renson 483 - High flow grille to be fitted in the frame CUSTOM - Renson

CUSTOM-MADE high flow ventilation grille to be installed in the frame , can be placed like double glazing .

Suitable for applications where high flow rate is required.
The free physical surface is 76%.

Material :

• Made from Alu AlMgSi 0.5 profiles (according to EN 12020-2)
• Standard: 304 stainless steel mesh – 6 x 6 mm
• Finish: natural anodized (20 microns) or powder coated in all RAL colors (60-80 microns)

Fixation :

To be installed like double glazing

Special applications:

1. Applications where high throughput is required

Dimensions:

• Blade pitch: 60 mm
• Frame thickness: 24 mm
• Minimum dimensions: 385 x 385 mm

Options:

• Water recovery profile
• Drip edge profile
• 304 stainless steel mosquito net – 2.3 x 2.3 / 10 x 10 / 20 x 20 or without mosquito net
• 316 stainless steel mosquito net
• Removable mosquito net
• Filtered
