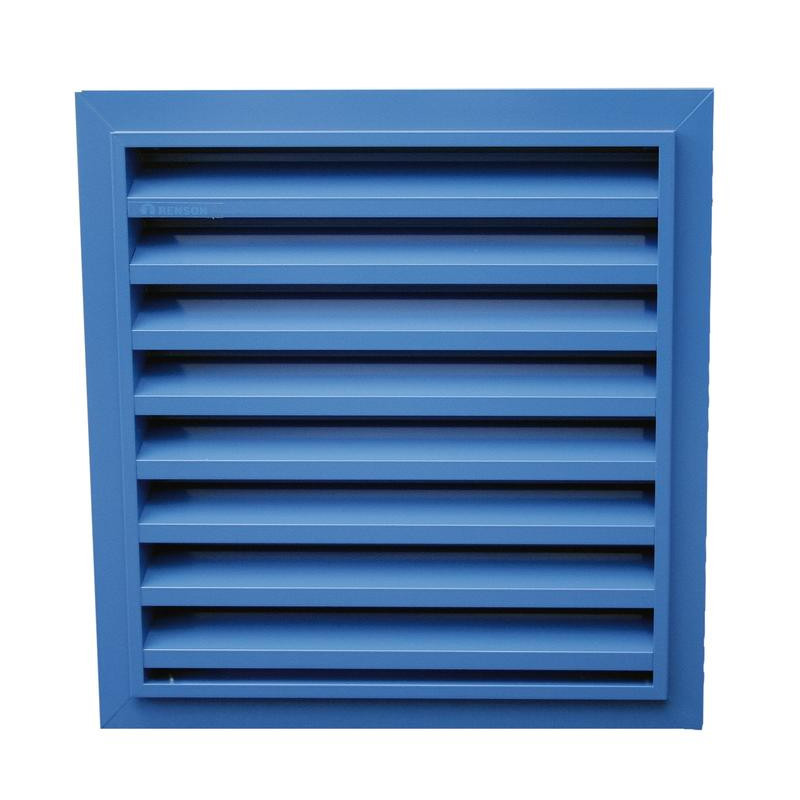

CUSTOMIZED heavy type ventilation grille to be placed in the frame , can be placed like double glazing.
The 484 grid has a good free physical surface area.

Material :

• Made from Alu AlMgSi 0.5 profiles (according to EN 12020-2)
• Standard: 304 stainless steel mosquito net - 2.3 x 2.3 mm
• Finish: natural anodized (20 microns) or powder coated in all RAL colors (60-80 microns)

Fixation :

To be installed like double glazing

Dimensions:

• Blade pitch: 50 mm
• Frame thickness: 24 or 28 mm
• Minimum dimensions: 220 x 220 mm

Options:

• Water recovery profile
• Drip edge profile
• 304 stainless steel mesh – 6 x 6 mm / 10 x 10 / 20 x 20 / without mosquito net
• 316 stainless steel mosquito net
• Removable mosquito net
• Filtered
