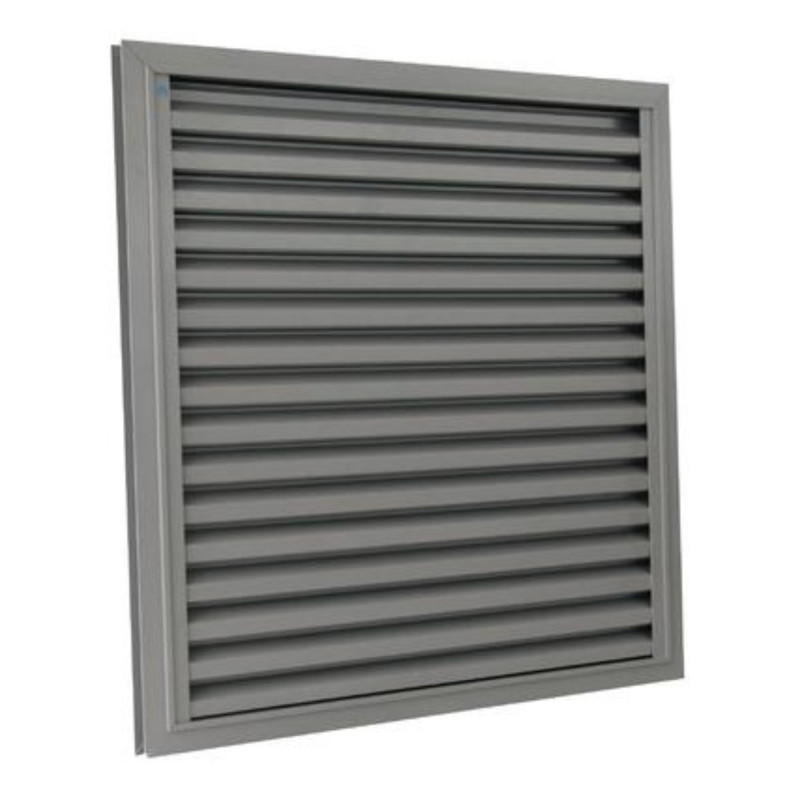

Renson 494 - Storm grille CUSTOM - Renson

Renson 494 - Storm grille CUSTOM - Renson

CUSTOM storm type ventilation grille to be installed in the frame which protects against intrusion and can be placed like double glazing.

Watertightness tested according to standard EN13030:2011, class A4 at 0.5 m/s.

Material :

• Made from Alu AlMgSi 0.5 profiles (according to EN 12020-2)
• Standard: 304 stainless steel mesh – 6 x 6 mm
• Finish: natural anodized (20 microns) or powder coated in all RAL colors (60-80 microns)

Fixation :

To be installed like double glazing

Dimensions:

• Blade pitch: 33 mm
• Frame thickness: 24, 28 or 32 mm
• Minimum dimensions: 130 x 130 mm

Options:

1. Water recovery profile
2. Drip edge profile
3. 304 stainless steel mosquito net 2.3 x 2.3 / 10 x 10 / 20 x 20 or without mosquito net
4. 316 stainless steel mosquito net
5. Removable mosquito net
6. Filtered
7. Welded blades (only powder coated)
