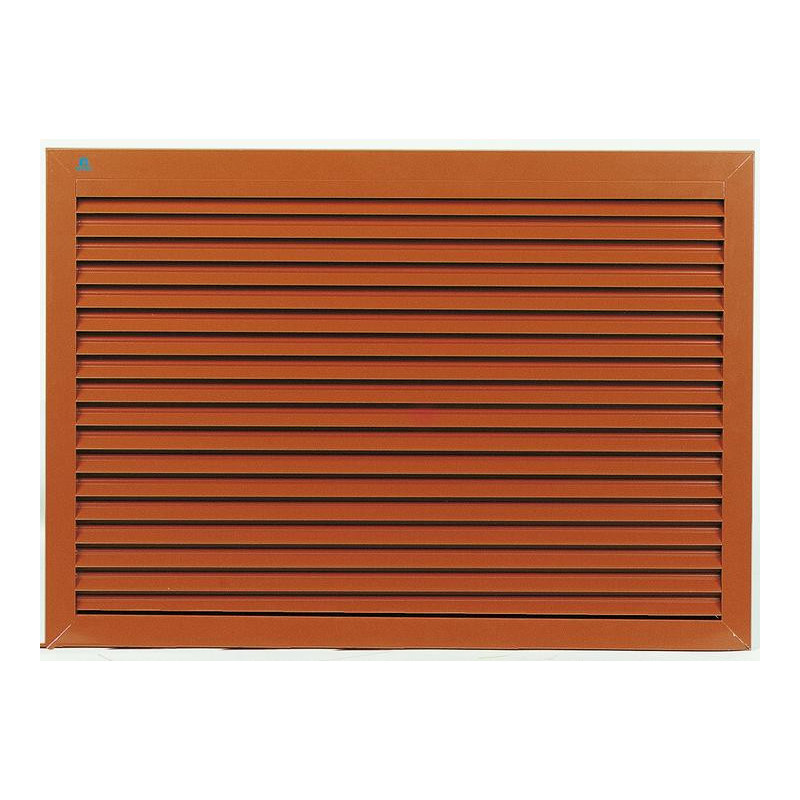

CUSTOM-MADE wall ventilation grille to be recessed with V-shaped slats which protects against visibility and the intrusion of objects.

Class IP 44 for the execution with water recovery profile and mosquito net for electrical installations at least 350 mm.
Renson's recessed wall grilles are fixed invisibly in the wall opening using clip springs or doguets.

Material :

• Made from Alu AlMgSi 0.5 profiles (according to EN 12020-2)
• Standard: 304 stainless steel mesh - 6 x 6 mm Equipped with earth terminal
• Finish: natural anodized (20 microns) or powder coated in all RAL colors (60-80 microns)

Fixation :

Doguets ref. 418 are included.
For grilles of more than 3 m², a reinforcing construction must be provided behind the grille.

Special applications:

1. Medium voltage cabins
2. IT premises

Dimensions:

• Blade pitch: 20 mm
• Recessed depth: 29 mm
• Frame coverage: 21 mm
• Minimum dimensions: 100 x 100 mm

Options:

1. Water recovery profile
2. Drip edge profile
3. 304 stainless steel mosquito net 2.3 x 2.3 / 10 x 10 / 20 x 20 / without mosquito net
4. 316 stainless steel mosquito net
5. Removable mosquito net
6. Counter-frame
7. Filtered
8. Frame without overlap
9. Grille to be placed in frame 415
