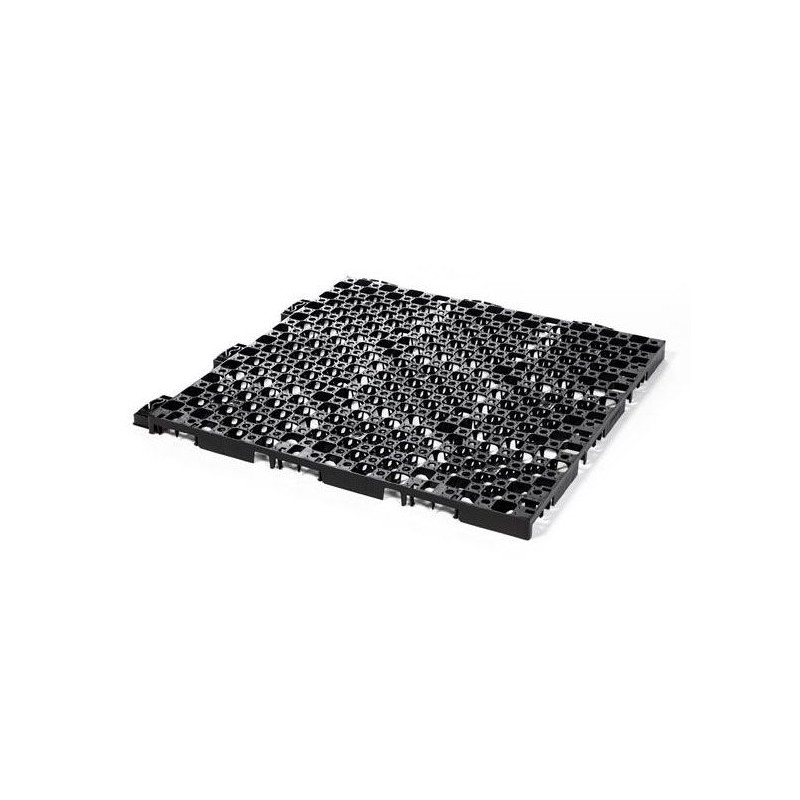

Drainage plate for artificial grass - Drainbase - ECCO

Drainage plate for artificial grass - Drainbase - ECCO

Please note: Price and quantity expressed in m².

Drainbase is an innovative system of water buffer tiles for a perfect water-permeable covering with artificial grass.

Drainbase is innovative in the field of artificial turf applications and combines the positive characteristics of artificial turf with the buffering and rainwater infiltration capabilities. Drainbase captures rainwater, buffers it under the tile and then lets it seep into the ground. This significantly increases the durability of your artificial grass.

Optimal load distribution:

• The perfect relationship between the contact surfaces at the top and bottom of the slab ensures optimal distribution of the surface load.
• The perfect guarantee of smooth artificial grass without defects! Avoid complex and expensive foundation work and save money and labor time!

High capacity water drainage:

• Drainbase allows an evacuation of 30 liters of water per m².
• The ideal solution for a perfect Eco-responsible application.

Single connection system:

The connections between each slab allow expansion and dimensional stability of the product (gel and heat).

A clever non-slip feature:

Above, the plate is provided with 1010 non-slip pins 2 mm high which hold the artificial turf in place without causing damage to the support of the synthetic turf.

Extreme flexibility:

• Thanks to the 9 flexible zones that Drainbase has, the plate can be applied to various supports while maintaining contact with the preserved surface

Technical characteristics :

The Drainbase slab is made up of an inverted checkerboard pattern which on the one hand allows good distribution of loads towards the foundation and on the other hand guarantees a stable contact zone for the artificial turf. The top consists of a non-slip layer which makes it more difficult for the artificial grass to slide.

The plate has been divided into 9 flexible zones allowing maximum contact with the surface in all circumstances. The plate is 100% permeable and has a water retention capacity of 30 liters/m². The connection between the Drain base slabs allows expansion and stability of the product (heat gel). Fixing caps that can be clicked into the plate are available separately. These plugs serve as a basis for fixing the artificial grass and the edging profile.

• Material: 100% recycled HDPE (high density polyethylene) and 100% recyclable.
• Plate height: 30 mm.
• Plate dimensions: 60 x 60 cm.
• Weight per plate: 917 grams.
• Water buffering capacity: 30 L/m²
• Permeability: 100%
