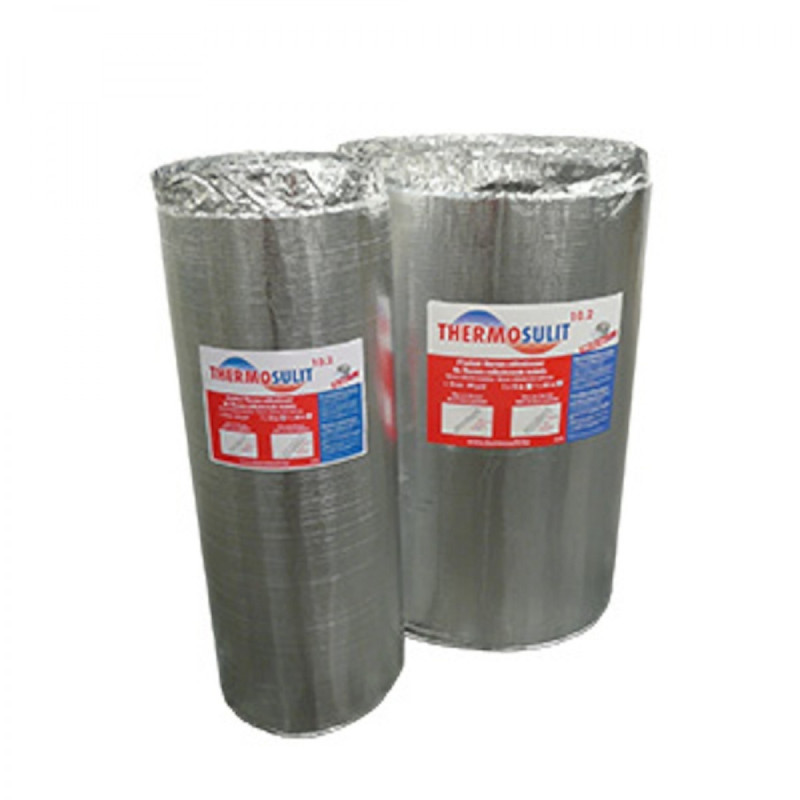

Thermosulit 10.2 - Heat reflective roof insulation - Insulco

Thermosulit 10.2 - Heat reflective roof insulation - Insulco

Thin reflective thermal insulation for roofing designed for the insulation of attics or attics . It can be implemented from the inside under the rafters or from the outside on the rafters during a total renovation of the roof.

Thermosulit 10.2 is a thin thermal insulator which bases its operating principle mainly on the phenomenon of reflection to guarantee you optimal roof insulation in all seasons.

Thanks to the combined action of the thermal break provided by the foam in the center and that of the reflection occurring on its two aluminum faces, Thermosulit 10.2 will protect your home from the cold in winter and the heat in summer .

In addition to energy savings , Thermosulit provides better living comfort in the attic in all seasons.

Composition :

Thermosulit 10.2 consists of a physical cross-linked "polyolefin" foam covered on both sides with an aluminium/reinforcing mesh complex.

It is assembled by fusion, without glue or sewing, to preserve all the physical qualities of the insulation.

Each side has an integrated aluminum overflow of 7 cm to facilitate installation without additional thickness and ensure complete sealing of Thermosulit 10.2.

Thermosulit 10.2 VS traditional insulation:

• In winter :

Thermosulit 10.2 protects against the cold outside and traps the heat produced inside. Traditional insulators absorb cold on one side and heat on the other, while thermosulit repels them. When there is a hot/cold contact within a mineral wool, this can generate a dew point which is a source of humidity in the roof.

• In summer :

Conversely, Thermosulit 10.2 reflects the heat to the outside, protecting against the transfer of temperature to the rooms located under the roof. In addition, it maintains the interior freshness allowing you to spend pleasant nights. It is the opposite phenomenon of thick fibrous insulation which slowly absorbs outside heat during the day, accumulates it and continues to release it at night in the attic...

Advantages :

• Cool attic in summer, warm in winter.
• 100% waterproof and airtight.
• Overlays without extra thickness.
• Economical solution quickly pays for itself.
• Non-toxic and non-irritant.
• Does not spread fire.
• Space saving.
• Soft and thin.
• Simple and quick installation.

Features :

• Materials: Physically cross-linked polyolefin / Pure aluminum / Fiberglass (mesh).
• Thickness: ± 10mm.
• Width: polyolefin ± 1 m / Aluminum width ± 1.15 m.
• Length: roll of 10 or 30 m.
• Weight: ± 470gsm.
• Fire resistant: yes.
• Air and water tightness: 100%.
• Aluminum reflection: more than 94%.
• Thermal resistance: R = 5 / 1.72 / 1.57 (m²K/W).
• Mechanical resistance: ± 12 (kN/m).
• Foam thermal conductivity: λ = ± 0.034 (W/mK).
• U coefficients: U = 0.2 / 0.58 / 0.6 (W/m²K).
