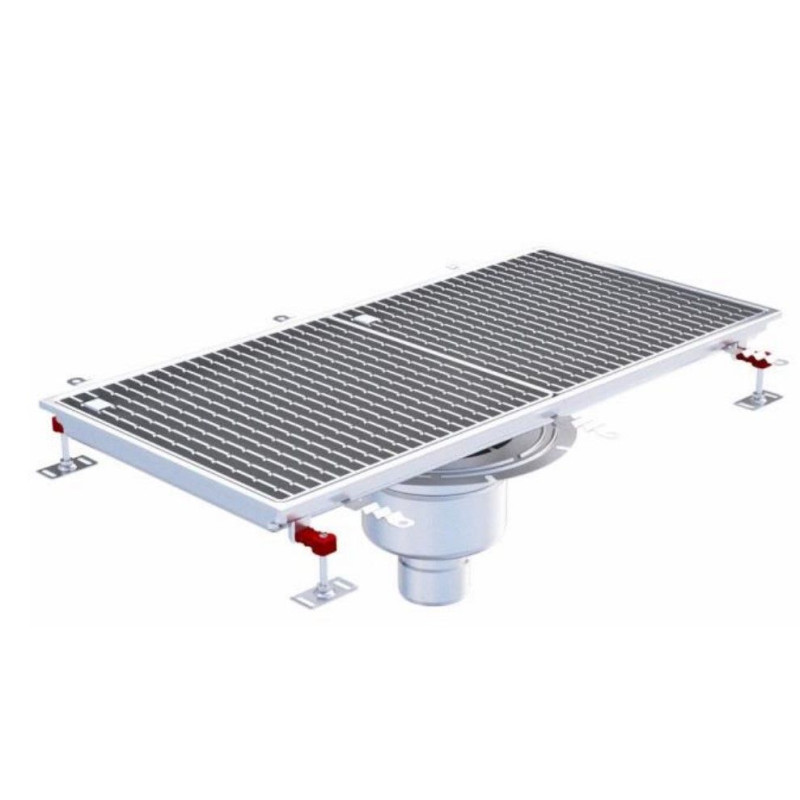

      Grid channel with telescopic siphon - Vertical outlet - ACO

      Gutter with telescopic floor siphon with vertical outlet. Right edge.

      Currently out of catalog
      Outside dimensions:
      Grid:
      €715.05Tax Included
      ACO T205K-MS-E1V

      Grid channel with telescopic siphon - Vertical outlet - ACO

      Gutter with telescopic floor siphon with vertical outlet. Right edge.

      Benefits:

      • Gutter with telescopic floor drains with vertical outlet.
      • Hygienic design in accordance with EN 1672, EN ISO 14159 and EHEDG documents nrs 8, 13 and 44.
      • With right edge.
      • Upper edge of the gutter with rubber bar (NBR, to absorb thermal expansion and as reinforcement).
      • Stainless steel, AISI 304 (1.4301), on request AISI 316L (1.4404).
      • Rounded corners (r = min 3 mm) and/or stamped hygienic concept.
      • Complies with EN 1253.
      • Telescopic floor siphons (height adjustable and 360° swivel) with gluing collar for connecting the sealing layer (membrane) and vertical outlet Ø 110 mm (type 157).
      • Unique concept, no stagnant water in the body of the drain, only in the removable siphon; If the siphon is removed, the drain empties automatically. There is no risk or danger that the body of the incorporated drain will be damaged by corrosive or aggressive waters.
      • Complete gutter with telescopic floor siphon, siphon, garbage basket, grid (non-slip), grounding fitting

      Grids:

      • Grating.
      • At Bars.

      Size:

      Wo Wi Lo Li H2 ØD
      [mm] [mm] [mm] [mm] [mm] [mm] [AISI]
      200 170 530 20W 60 110 304
      1030 1000
      300 270 330 300 55
      630 600 60
      1030 1000
      2030 2000
      400 370 430 400
      630 600
      830 800
      20W 470 530 20W 65
      1030 1000
