Slab spacer for pedestal - LINE ECO

Slab spacer for pedestal - LINE ECO

• To be placed on the head of the stud.
• For aesthetics, drainage and expansion.
• Length: 243 mm.
• Width: 83 mm.
• 11 mm spreader.
• Thickness: 2.8mm.
• 3 mm fin.

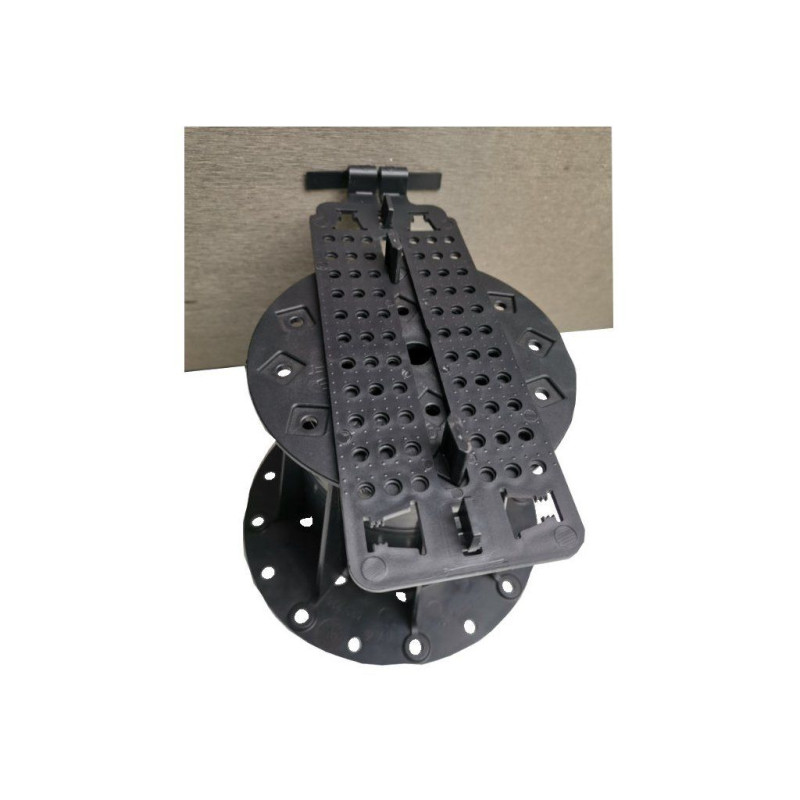

The wall spacer is a support that is placed under the slab on the different ranges of LINE ECO studs.

It makes it possible to create a space of 11 mm between the slabs and the wall which homogenizes the aesthetics of the width of the gaps, promotes the flow of water at the foot of the façade while facilitating the expansion of the whole and eliminates the shocks between the slabs and the wall.

TIP: The legs of the LINE ECO studs are marked to facilitate cutting for laying against the walls and in the corners in order to be able to approach the head of the studs are the walls.

Advantages of LINE ECO studs.

• Quick assembly and adjustment on a quality concrete or a pre-existing terrace.
• Wide head
• Possibility to fix the stud to the terrace.
• Resistant to atmospheric, UV and most chemical reactions

The interest of using terrace studs.

• No formation of puddles on the terrace due to the spacing of the joints on the feet. There is no accumulation of water on the pavement.
• Wood or slab cladding can be freely installed on the sealing or thermal insulation.
• The installation of fittings or wiring can be carried out later, discreetly and remain accessible.
• Can be installed by all weather conditions.
• Allows a punctual intervention of the sealing and insulation problems.
• Due to the good aeration, the life of the insulation material, sealing, coatings is extended, especially wood.
• Removable and portable system, it can be used under a temporary floor covering.
• Lighting and water management can be done under the system.
• allows you to manage the differences in slope and level.
• Water discharged from the vegetative soil in landscaping areas can be easily removed from the system.
• Planting areas can be easily integrated, while installing drainage, watering, thicknesses and volumes necessary for the proper growth of plants,
• Pools, trails, passages,... can be arranged
• PP Recycled polypropylene and recycled.

Calculation of the number of plots per M² - Density

It is in calculation of the average, it is necessary to take care to arrange correctly for the narrow areas and paths which require a higher average of studs.
