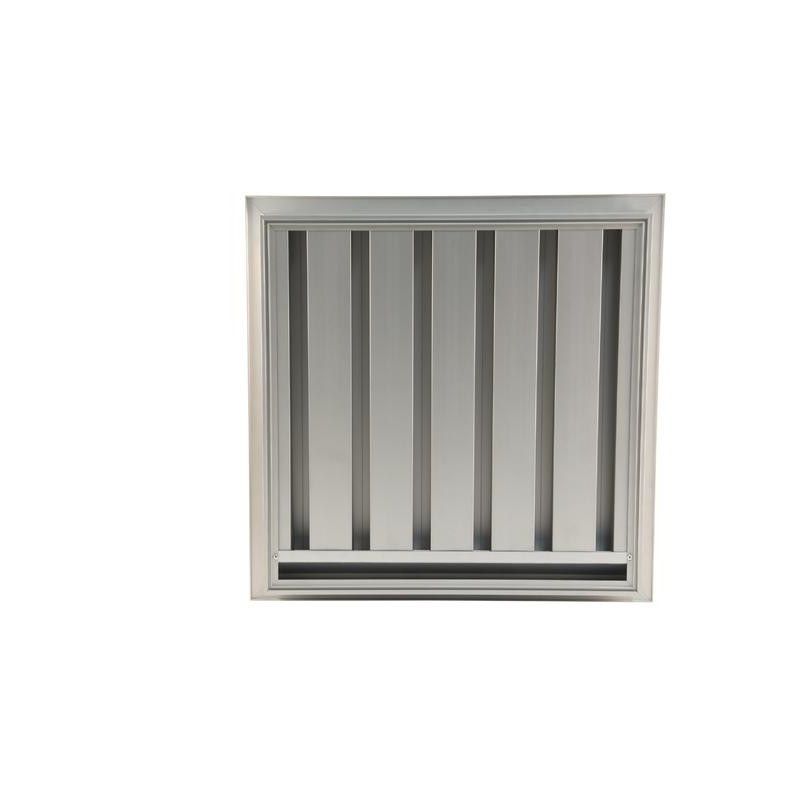

Renson 468 SA - CUSTOM-MADE sand-tight wall grille - Renson

Renson 468 SA - CUSTOM-MADE sand-tight wall grille - Renson

CUSTOM-MADE recessed sand - tight ventilation wall grille fixed invisibly in the wall opening using doguets.

• Equipped with a sand collector under the lower blade.
• Designed for sandy or dusty environments.

Material :

• Made from Alu AlMgSi 0.5 profiles (according to standard EN 12020-2)
• Standard: 304 stainless steel mosquito net - 2.3 x 2.3 mm
• Finish: natural anodized (20 microns) or powder coated in all RAL colors (60-80 microns)
• Vertical slats, no visible rivets on the front of the grille
• Equipped as standard with a sand collector profile under the lower blade, finished in the same color as the grid

Dimensions:

• Blade pitch: 85 mm
• Recessed depth: 60 mm
• Frame coverage: 25 mm
• Minimum dimensions: 185 x 185 mm
• Width: (multiple of 42.5mm) + 185mm
  • Noticed :
    - symmetrical grid in case of even multiple
    - asymmetrical grid in case of odd multiple
• Maximum dimensions: 2012.5 x 1200 mm
